NO |
部件名称 |
材料 |
1 |
阀体 |
CF8M |
2 |
阀盖 |
CF8M |
3 |
阀座 |
PTFE |
4 |
球 |
SS316 |
5 |
密封圈 |
CF8M |
6 |
阀杆密封 |
PTFE |
7 |
阀杆 |
SS316 |
8 |
防静电装置 |
PTFE |
9 |
阀杆填料 |
PTFE |
10 |
填料压盖 |
SS304 |
11 |
弹性垫圈 |
SS304 |
12 |
手柄 |
SS304 |
13 |
螺母 |
SS304 |

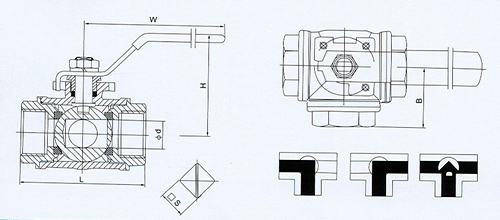

NPS |
d |
L |
H |
W |
B |
ISO5211 |
□S |
1/4 |
4.2 |
64 |
32 |
85 |
32 |
F2 |
(7) |
3/8 |
6 |
64 |
32 |
95 |
32 |
F2 |
(7) |
1/2 |
10 |
68 |
34 |
108 |
34 |
F3 |
(9) |
3/4 |
15 |
78 |
60 |
115 |
39 |
F3 |
(9) |
1 |
20 |
86 |
60 |
135 |
43 |
F4 |
(9) |
1-1/4 |
25 |
111 |
76 |
150 |
55.5 |
F4 |
(11) |
1-1/2 |
32 |
126 |
85 |
175 |
63 |
F5 |
(11) |
2 |
40 |
143 |
95 |
190 |
71.5 |
F5 |
(11) |
